LED Flood Light (JU-2027-40W)

  • outdoor01_1
  • outdoor01_2
  • outdoor01_3
  • outdoor01_4
  • outdoor01_5

Enquire Form

    Premium Quality   Fast Delivery    Technology Support

Introduction

Model No : JU-2027-40W
Product Name : led Flood light

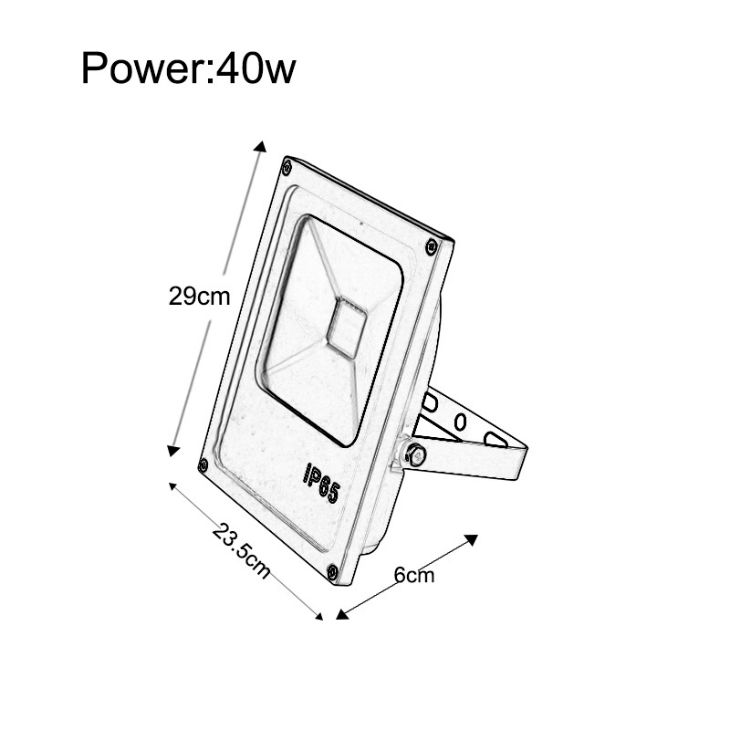

Dimension: 29*23.5*6
Power of Led : 40W
Luminous flux : 3600lm
Lamp efficiency : 90-100lm/w
Input Voltage : AC85-265V
Output Voltage : 27-36V
Driver Current : 1.2A
Color Temperature : 2800-3000K,4000-4500K 6000-6500K,7000-7500K

Specifications

Material : Aluminum Beam angle : 45°60°120° Working temperature : -20~+50°C Led Brand : Epistar or Bridgelux Power Efficiency : >85% Power Factor (PF) : ≥0.9 LED color index (CRI) : Ra>75 LED lifetime : 5,0000 hours Certificate : CE, ROHS, SAA, EMC, LVD Warranty :3 Years Pieces per carton : 8pcs

Features

Simple and reliable design

1.Standard Configuration:
With Epistar high-lumen integrating encapsulated LED Chip from Taiwan Reliable and stable constant-current power driver from Taiwan or china, which made from Rubycon, Infineon, MOS power tube is IR, schottky is Onsemi.

2. Top Configuration:
Amercian BridgeLux chip or Cree chip. Mean Well Driver.

Description

This model has an integrated PIR Motion Sensor to detect movement which will automatically switch the lights on. The Sensor is fully adjustable via 3 dials at the bottom. Smart motion sensor— Detect any movement 10 meters and swich on automatically.

Adjustable in
(1) Sensitivity from 0-12M;
(2)Lighting time from 5sec. to 8 minutes;
(3) Lux environment from night to day light. Aluminum housing — Waterproof aluminum house, IP65. Low power consumption — usually a 50W LED flood equal to a 400-500W halogen bulb, energy-saving up to 80% Long life span— compare to conventional lamp like halogen or HPS life span of 8000 hours, LED last more than 50,000 hours. Easy installation — come with steel stand for insallation, the sensor is rotationable to adjust detective angle.
