LED Street Light(U-LD-09-120W)
Premium Quality Fast Delivery Technology Support
Introduction
Model No : JU-LD-09-120W
Product Name : led street light

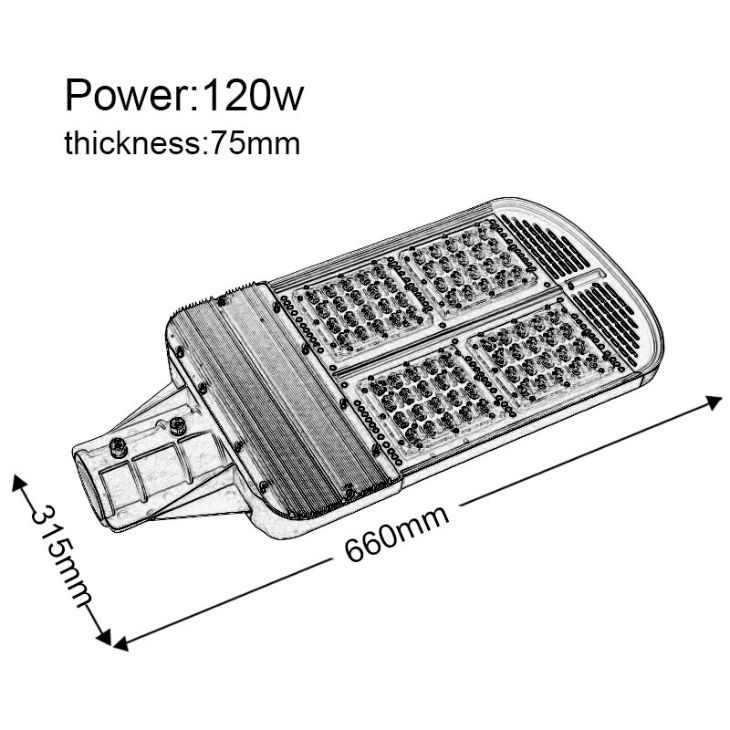

Dimension : L679xW292xH98mm
Power of Led : 120W
Luminous flux : 10800lm
Lamp efficiency : 90-100lm/w
Input Voltage : AC85-265V
Output Voltage : 27-36V
Driver Current : 3.6A
Color Temperature : 2800-3000K,4000-4500K
6000-6500K,7000-7500K
Specifications
Material : Aluminum
Beam angle : 60°
Working temperature : -20~+50°C
Led Brand : Epistar or Bridgelux
Power Efficiency : >85%
Power Factor (PF) : ≥0.9
LED color index (CRI) : Ra>75
LED lifetime : 5,0000 hours
Certificate :CE, ROHS, SAA, EMC, LVD
Warranty : 3 Years
Pieces per carton : 2pcs
Features
Simple and reliable design
1.Standard Configuration:
With Epistar high-lumen integrating encapsulated LED Chip from Taiwan
Reliable and stable constant-current power driver from Taiwan or china, which made from Rubycon, Infineon, MOS power tube is IR, schottky is Onsemi.
2.Top Configuration:
Amercian BridgeLux chip or Cree chip.
Mean Well Driver.
Description
High power of LED source, It is equivalent to 3.5~5 times traditional lights.
Die-Cast Aluminum Housing, Good for heat sinking.
Wide Voltage(AC100-240V), High efficiency, constant current.
Superior tempered glass has a good light transmittance, invariant color and Strong for the normal damage.
COB LED Light Source, no ghosting as panel light source shows.
Premium quality driver ensures above 50000 hours use-life.
Easy to Mount, no any expense on maintenance when is working normally.
Energy Saving and Green products, no any pollutant to our environment.
Applications: Street, Road, Highway, Park, Garden.
