LED Street Light (JU-LD-07-150W)

  • outdoor01_1
  • outdoor01_3
  • outdoor01_1

Enquire Form

    Premium Quality   Fast Delivery    Technology Support

Introduction

Model No : JU-LD-07-150W
Product Name : led street light

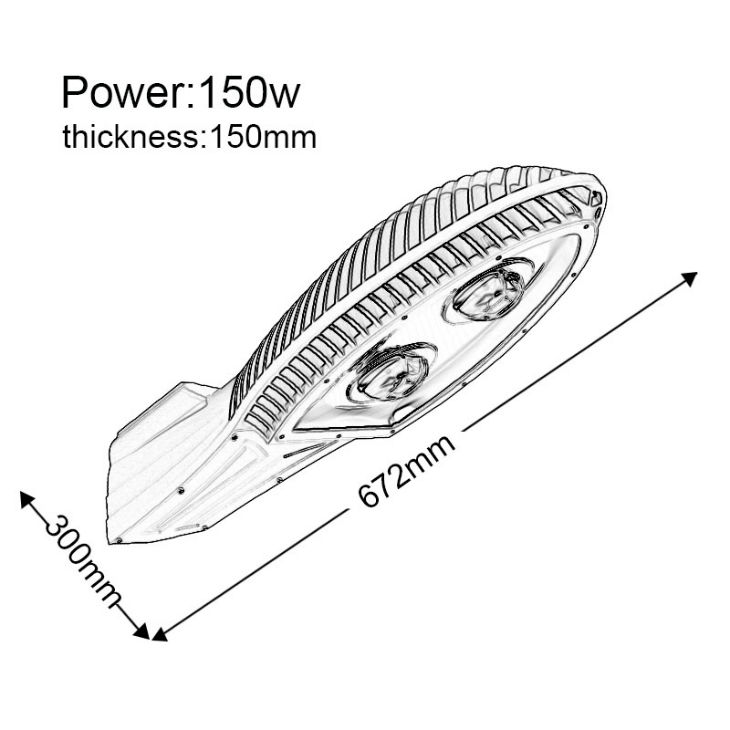

Dimension : L672xW300xH150mm
Power of Led : 150W
Luminous flux : 13500lm
Lamp efficiency : 90-100lm/w
Input Voltage : AC85-265V
Output Voltage : 27-36V
Driver Current : 4.5A
Color Temperature : 2800-3000K,4000-4500K 6000-6500K,7000-7500K

Specifications

Material : Aluminum
Beam angle : 60°
Working temperature :-20~+50°C
Led Brand : Epistar or Bridgelux
Power Efficiency : >85%
Power Factor (PF) : ≥0.9
LED color index (CRI): Ra>75
LED lifetime : 5,0000 hours
Certificate :CE, ROHS, SAA, EMC, LVD
Warranty :3 Years
Pieces per carton : 2pcs

Features

Simple and reliable design 1.Standard Configuration: With Epistar high-lumen integrating encapsulated LED Chip from Taiwan Reliable and stable constant-current power driver from Taiwan or china, which made from Rubycon, Infineon, MOS power tube is IR, schottky is Onsemi.

2.Top Configuration:
Amercian BridgeLux chip or Cree chip. Mean Well Driver.

Description

High power of LED source, It is equivalent to 3.5~5 times traditional lights. Die-Cast Aluminum Housing, Good for heat sinking. Wide Voltage(AC100-240V), High efficiency, constant current. Superior tempered glass has a good light transmittance, invariant color and Strong for the normal damage. COB LED Light Source, no ghosting as panel light source shows. Premium quality driver ensures above 50000 hours use-life. Easy to Mount, no any expense on maintenance when is working normally. Energy Saving and Green products, no any pollutant to our environment. Applications: Street, Road, Highway, Park, Garden.
