Flood light (JU-2022-100W)
Premium Quality Fast Delivery Technology Support
Introduction
Model No: JU-2022-100W
Product Name : led Flood light

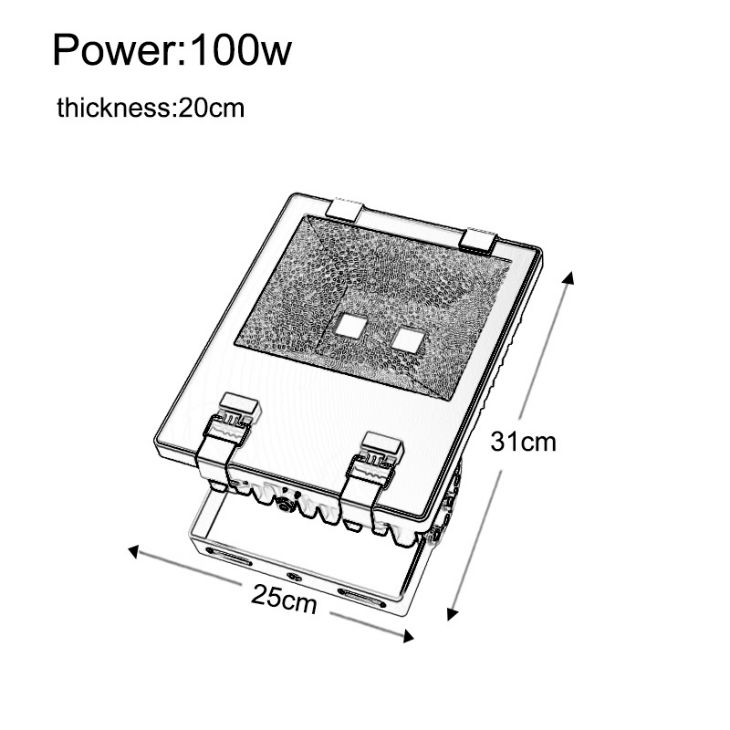

Dimension :31*25*20CM
Power of Led : 100W
Luminous flux : 6300lm
Lamp efficiency : 90-100lm/w
Input Voltage : AC85-265V
Output Voltage : 27-36V
Driver Current : 3A
Color Temperature: 2800-3000K,4000-4500K
6000-6500K,7000-7500K
Specifications
Material : Aluminum
Beam angle : 45°60°120°
Working temperature : -20~+50°C
Led Brand : Epistar or Bridgelux
Power Efficiency : >85%
Power Factor (PF) : ≥0.9
LED color index (CRI) : Ra>75
LED lifetime : 5,0000 hours
Certificate : CE, ROHS, SAA, EMC, LVD
Warranty :3 Years
Pieces per carton: 4pcs
Features
Simple and reliable design
1.Standard Configuration:
With Epistar high-lumen integrating encapsulated LED Chip from Taiwan
Reliable and stable constant-current power driver from Taiwan or china, which made from Rubycon, Infineon, MOS power tube is IR, schottky is Onsemi.
2.Top Configuration:
Amercian BridgeLux chip or Cree chip.
Mean Well Driver.
Description
This model has an integrated PIR Motion Sensor to detect movement which will automatically switch the
lights on. The Sensor is fully adjustable via 3 dials at the bottom.
Smart motion sensor— Detect any movement 10 meters and swich on automatically.
Adjustable in
(1) Sensitivity from 0-12M;
(2)Lighting time from 5sec. to 8 minutes;
(3) Lux environment from night to day light.
Aluminum housing — Waterproof aluminum house, IP65.
Low power consumption — usually a 50W LED flood equal to a 400-500W halogen bulb, energy-saving up to 80%
Long life span— compare to conventional lamp like halogen or HPS life span of 8000 hours, LED last more than 50,000 hours.
Easy installation — come with steel stand for insallation, the sensor is rotationable to adjust detective angle.
