Wall Washer (JU-1013-24W)

  • outdoor01_1

Enquire Form

    Premium Quality   Fast Delivery    Technology Support

Introduction

Model NO : JU-1013-15W JU-1013-24W JU-1013-36W
Dimension : L500xW76xH75mm L1000xW76xH75mm L1200xW76xH75mm
Power : 15W 24W 36W
LEDs :15pcs Epistar chip 24pcs Epistar chips 36cs Epistar chips
Input Voltage : DC24V/AC110V/AC220V
Color : W/ WW / CW / R / G / B / A / Y / RGB
Protection grade : IP65
Beam Angle : 15°/25°/45°/60°
Material : aluminum+ tempered glass
Controller : Automatic, DMX512
Power efficiency : >90%

Specifications

Average lifetime : >50,000hrs
Color Temperature : Warm white(2700~3500K)/ white(5000~6500K)/ Cool white(6500~9000K)
Wave lenghth : Red(620-630nm),green(520-525nm),blue(465-470nm),amber(590-595nm)
Environment humidity : 0~85%RH
Storage Temperature : -40°~+80°
Working Tmeperature :-20°~+50°
Certification : CE + RosH

Features

1: Shell color: Black, white, optional
2:Adopt waterproof aluminum alloy for housing material, sealed by tempered glass, silicone rubber and waterproof oil to waterproof perfectly;
3: Color : Red, Green, Blue, Amber, Yellow, RGB, White (warm white, white, cool white)
4: Projection angle can be adjusted by lens angle;
5: Protecting rating: IP65.
6: Average lifetime is above 50,000 hours;
7: Can be used in environment temperature difference of -20~+50 °C;
8: We provide 2 years warranty for our all products.

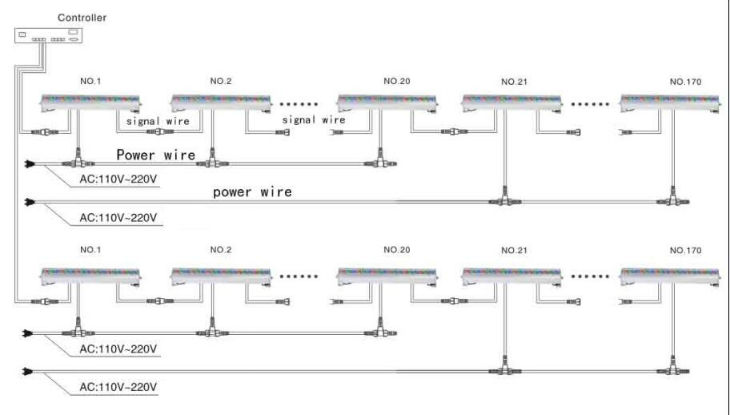

How to work and install our led wallwashers?

Applications of LED wallwasher:
Theaters, Casinos, Bridges,Clubs, Hotels, Stages, Parks, Plazas, Commercial buildings, Facade, Art gallery etc.
